Tutorial 3: Theta Sequences with Real Hippocampal Data

This tutorial runs a complete theta sequence analysis on a real hippocampal recording from the publicly available CRCNS HC-11 dataset. Unlike the synthetic data in Tutorials 1–2, this pipeline works directly from the original .mat and .eeg files with no preprocessing required.

By the end you will have:

  • Loaded a real CRCNS HC-11 recording session into SynapChart
  • Understood how running direction is used as a behavioral state key to drive parallel analysis branches
  • Computed direction-specific population tuning curves, Bayesian-decoded posteriors, and averaged theta sequences
  • Produced a theta sequence heatmap for each running direction

Estimated time: 20–30 minutes
Prerequisites: None — this tutorial is self-contained
Data: One session from the CRCNS HC-11 dataset (free account required at crcns.org)

What are theta sequences?

During active navigation, hippocampal place cells fire in sequences within individual theta cycles (~8 Hz): cells representing locations ahead of the animal fire early in the cycle, cells at the current location fire near the trough, and cells representing locations behind fire late. Averaging decoded posteriors across many theta cycles and aligning them to the animal's current position reveals a characteristic diagonal stripe — the theta sequence — showing the hippocampus sweeping through a spatial trajectory on every cycle.

Part 1 — The CRCNS HC-11 Dataset

CRCNS HC-11 contains simultaneous multi-electrode recordings from hippocampal area CA1 and the medial entorhinal cortex in rats running on a linear track. Each session includes multi-unit spike times, 1-D linearised position, and wideband LFP.

To download:

  1. Create a free account at crcns.org
  2. Navigate to HC → HC-11 and download one session. This tutorial uses Achilles_10252013
  3. Extract the archive. You should have a folder like:
Achilles_10252013/
    Achilles_10252013_sessInfo.mat   ← session metadata, spikes, position, epochs
    Achilles_10252013.eeg            ← wideband LFP (all channels, ~11 GB)
    Achilles_10252013.xml            ← probe geometry and sampling rate metadata

Disk space

The .eeg file can be 5–15 GB. The pipeline loads only the MazeEpoch portion (typically < 30 minutes) so peak RAM usage stays manageable, but make sure you have enough free disk space to extract the archive.

Part 2 — Load the Template

In the toolbar click Templates, expand the Tutorial category, and select crcns_hc11_theta_precession_concise.

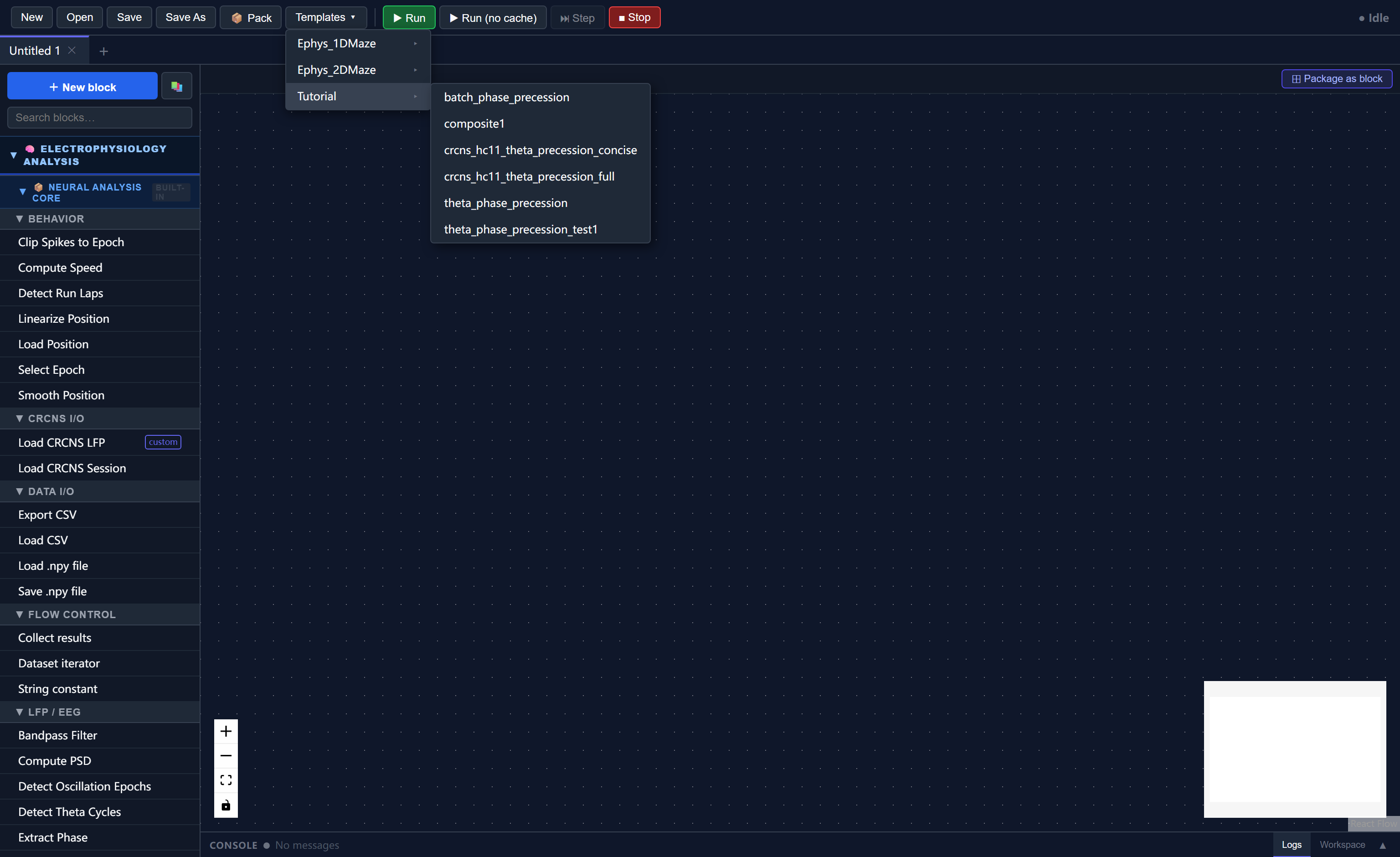

Template menu

The canvas loads a 17-node pipeline arranged in two parallel analysis branches that share a common data-loading trunk:

Load CRCNS Session ──► Select Epoch ──► Clip Spikes to Epoch ──────────────────────┐
         │                                                                           │
         └──► position ──────────────────────────────────────────────────────────┐  │
         │                                                                        │  │
         └──► Detect Run Laps ────────────────────────────────────────────────┐  │  │
                                                                               │  │  │
Load CRCNS LFP ──► Bandpass (6–12 Hz) ──► Extract Phase ──► Detect Theta Cycles  │  │
                                                                               │  │  │
Clip Spikes ──► Bin Population Spikes ──────────────────────────────────────┐  │  │  │
                                                                             │  │  │  │
                              ┌─ Dir 1 branch ─────────────────────────────┘  │  │  │
                              │  Tuning Curves (dir=1) ◄────────────────────────┘  │
                              │       │                                            │
                              │  Bayesian Decoder ◄── spike_matrix                │
                              │       │                                            │
                              │  Theta Sequences (dir=1) ◄── theta_cycles, laps ──┘
                              │       │
                              │  Plot Theta Sequences
                              │
                              └─ Dir 2 branch (identical, direction=2)
                                 ...
                                 Plot Theta Sequences

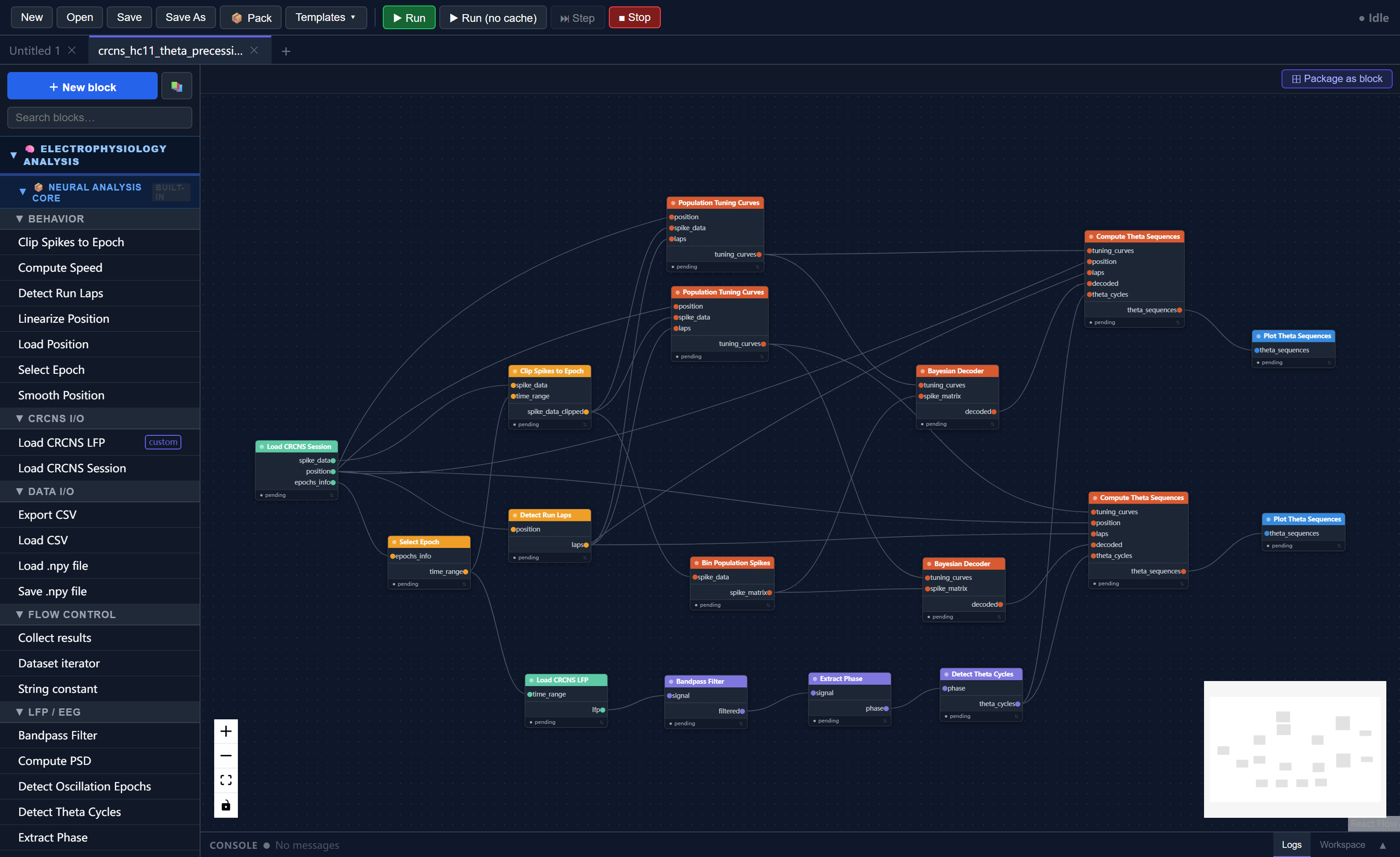

Template on canvas

Part 3 — Set the Session Path

Only two parameters need to be changed. Double-click each block and update its session_path:

Block Parameter Value
Load CRCNS Session session_path /path/to/Achilles_10252013
Load CRCNS LFP session_path /path/to/Achilles_10252013

Both blocks point to the same folder. Everything else is pre-configured for the HC-11 dataset.

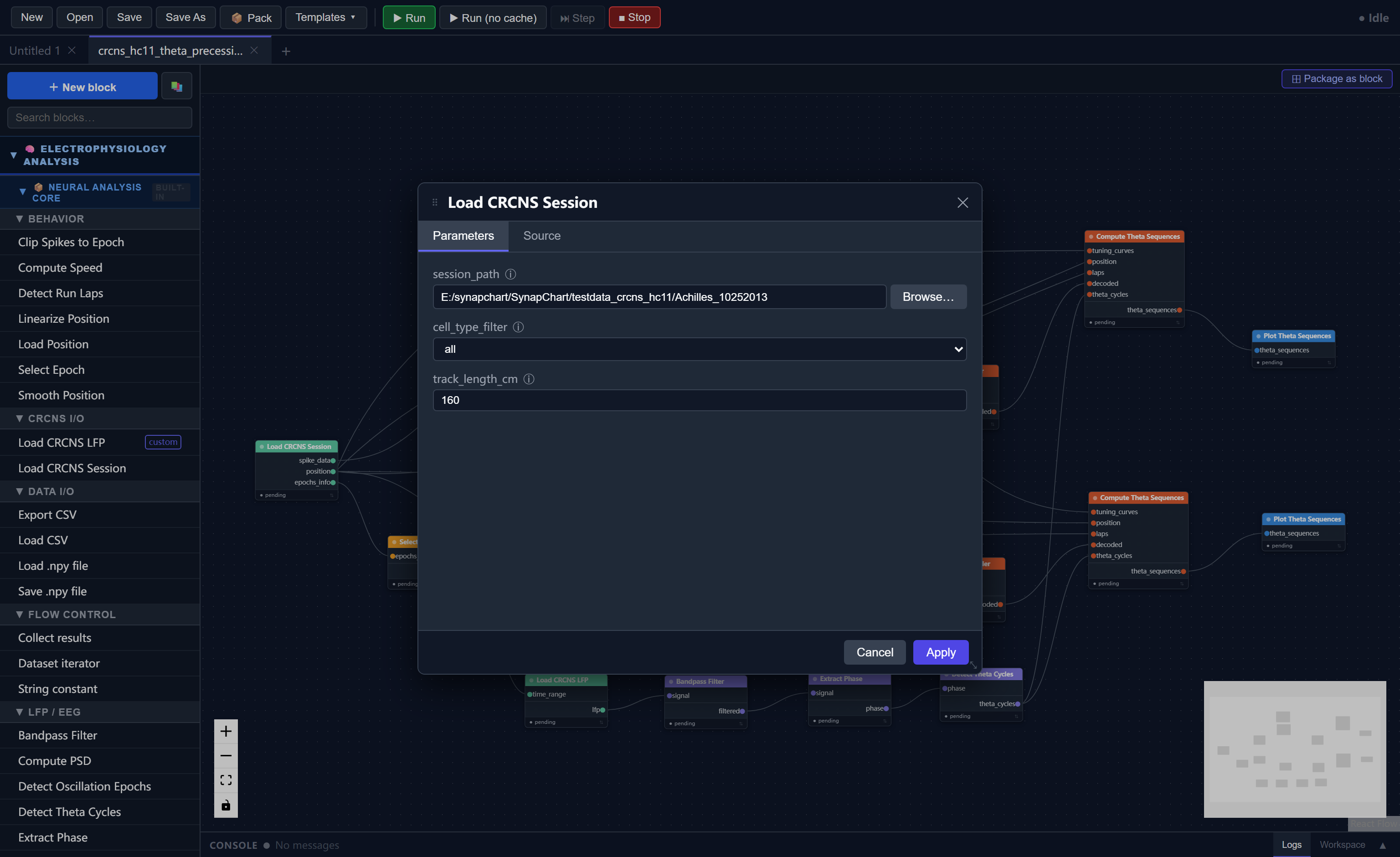

Setting session path

Other parameters you can tune

  • Load CRCNS Session → cell_type_filter: all (default), pyramidal, or interneuron
  • Load CRCNS Session → track_length_cm: set to the known track length (default 160 cm for HC-11)
  • Load CRCNS LFP → channels: which LFP channel to use (default 0)

Part 4 — The Shared Trunk

The first group of blocks loads and prepares the data. These run once and feed both direction branches.

4.1 Load CRCNS Session

Reads the *_sessInfo.mat file and returns:

Output Contents
spike_data Multi-cell spike times with per-spike cell IDs
position Linearised 1-D position (cm) at ~39 Hz, covering the full recording
epochs_info Epoch boundaries: MazeEpoch, PREEpoch, POSTEpoch, sleep epochs

4.2 Select Epoch → Clip Spikes to Epoch

Select Epoch extracts the MazeEpoch time window ([t_start, t_end]) from the epoch boundaries. This window is passed to two blocks:

  • Load CRCNS LFP — uses it to load only the maze-epoch LFP slice, avoiding reading the full ~11 GB file into memory
  • Clip Spikes to Epoch — restricts the spike data to the same window

4.3 Detect Run Laps

Scans the position trace and identifies continuous high-velocity running bouts (laps) that exceed the speed (5 cm/s), duration (1 s), and distance (30 cm) thresholds.

Each detected lap is labelled with a direction:

  • Direction 1 — descending runs (animal moves from high position to low position)
  • Direction 2 — ascending runs (animal moves from low to high)

The laps object stores all detected bouts and is passed to both direction branches.

4.4 LFP Processing: Bandpass → Phase → Theta Cycles

Block What it does
Bandpass Filter (6–12 Hz) Isolates the theta oscillation from the raw LFP
Extract Phase Computes instantaneous phase via the Hilbert transform (0 = peak, ±π = trough)
Detect Theta Cycles Finds individual peak-to-peak cycles (expected 4–12 Hz, so 83–250 ms duration)

The cycle boundaries array (N_cycles × 2) is shared by both direction branches.

4.5 Bin Population Spikes

Converts the clipped multi-cell spike times into a (n_cells × n_time_bins) spike count matrix using 20 ms bins — the input format required by the Bayesian decoder.

Part 5 — Running Direction as a Behavioral State

This is the key design pattern in the template.

On a linear track, hippocampal cells are direction-selective: a cell's firing rate at a given position often differs substantially between inbound and outbound runs. Computing a single tuning curve that pools both directions would mix these two firing patterns and degrade decoding accuracy.

The template handles this by treating running direction as a behavioral state key: instead of one analysis branch, there are two identical branches that differ only in which laps they use.

How it works

The direction parameter appears in three blocks per branch:

Block direction parameter Effect
Population Tuning Curves 1 or 2 Occupancy and spike counts are computed only during laps of this direction
Compute Theta Sequences 1 or 2 Only theta cycles whose midpoint falls inside a lap of this direction are accumulated
Bayesian Decoder (none) Uses whichever tuning curves it receives — the direction is implicitly set by the tuning curve input

Setting direction="1" in a branch and direction="2" in the other is sufficient to route each branch to the correct behavioral epochs. The blocks handle the filtering internally — no manual data splitting is required.

What you get

Each branch produces an independent theta sequence heatmap reflecting the neural dynamics during that running direction:

  • Direction 1 heatmap: averaged decoded posteriors across descending laps, aligned to the animal's position at each theta trough
  • Direction 2 heatmap: same for ascending laps

Comparing the two heatmaps lets you assess whether theta sequences are symmetric across directions — a question with implications for the directionality of hippocampal trajectory coding.

Choosing what to visualize or compare

The template visualizes both directions independently. You can adapt this in several ways:

  • Use only one direction: delete one branch and set direction="both" in the other if you want all laps pooled
  • Average the two heatmaps: add a custom block that receives both theta_sequences outputs and averages the matrices
  • Add more behavioral states: if you have multiple epochs (e.g., separate sleep and wake periods) you can duplicate branches for each, connecting a different epoch's laps or time_range to each copy

This pattern generalises to any categorical behavioral variable — running speed bands, reward zones, correct vs. error trials — wherever separate tuning curves and averaged dynamics are scientifically meaningful.

Part 6 — Run and Interpret

Click Run. The run progress panel expands and shows blocks executing in order. Typical runtime for a full MazeEpoch session on a modern laptop:

Stage Approx. time
Load session + LFP 5–20 s (depends on disk speed)
Bandpass + phase + cycles < 5 s
Tuning curves (× 2) 5–15 s
Bayesian decoding (× 2) 10–30 s
Theta sequences (× 2) 10–30 s

Caching accelerates re-runs

After the first run, every block caches its output. Changing only a plotting parameter re-runs only the plot block — all upstream computation is loaded from cache instantly.

When complete, two visualization windows appear — one per direction.

Reading the theta sequence heatmap

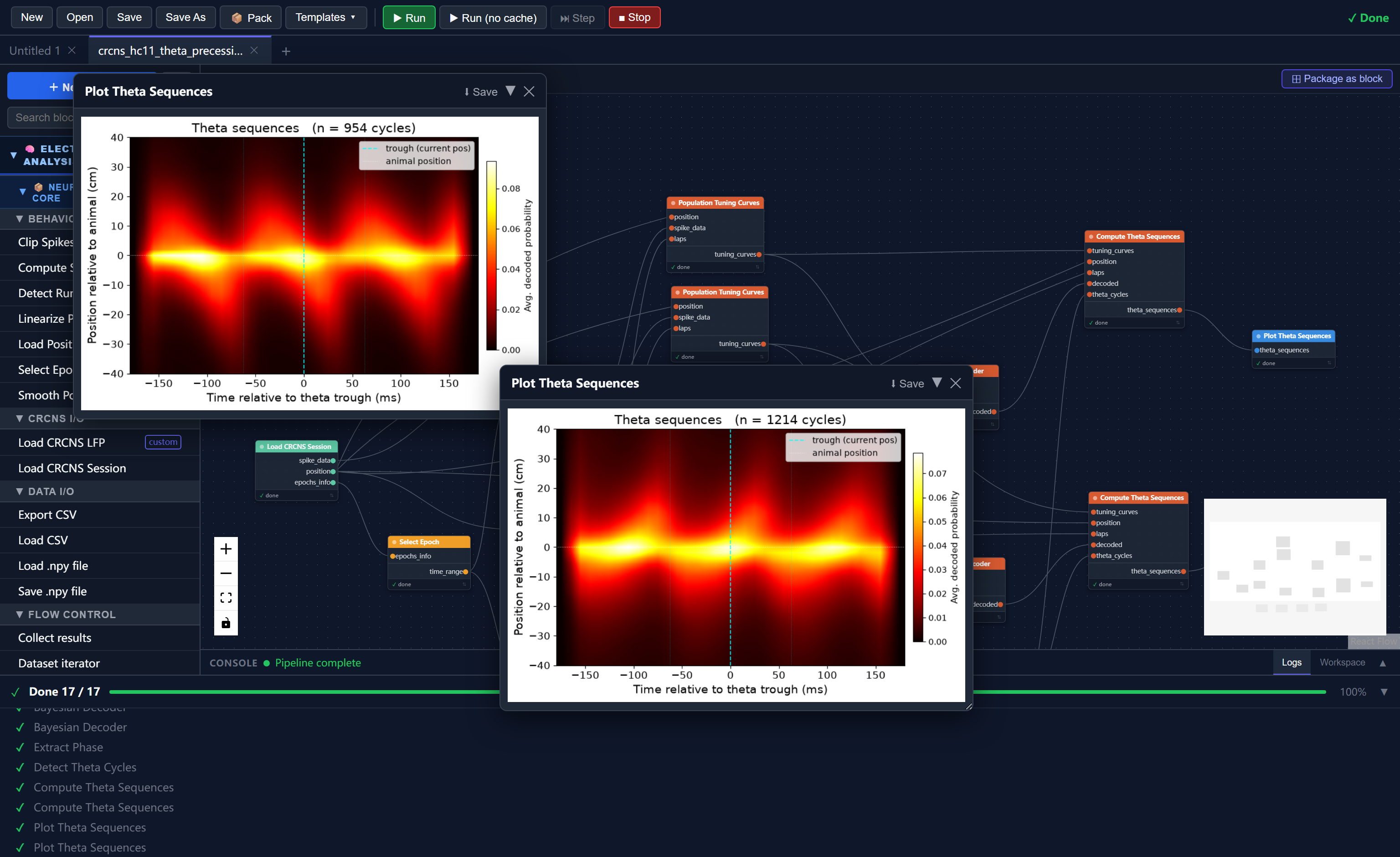

Theta sequence heatmap

Axis What it shows
x-axis Time relative to the theta trough (ms); 0 = trough = animal's current position
y-axis Position relative to the animal (cm); positive = ahead, negative = behind
Colour Average decoded probability across all cycles of this direction

A strong theta sequence appears as a diagonal stripe running from bottom-left to top-right: early in the cycle (negative time) the decoded location is behind the animal, and late in the cycle (positive time) it is ahead. This look-ahead effect reflects the hippocampus sweeping through a prospective spatial trajectory on each theta cycle.

The cyan dashed vertical line marks the trough (t = 0). The white dotted horizontal line marks the animal's actual position (relative position = 0). A diagonal of high probability crossing both reference lines is the hallmark of a theta sequence.

Interpreting weaker sequences

Theta sequences are typically clearest in the first MazeEpoch and in animals with strong, well-isolated place cells. If the heatmap looks flat or noisy, try the Achilles or Buddy animals which tend to have the largest cell counts in HC-11.

Part 7 — Adjustable Parameters

Once you have run the pipeline once, you can experiment with the following parameters without re-running the expensive upstream stages (the cache handles it):

Theta sequence accumulation

Parameter Default Effect
half_window_ms 180 Width of the time window around each trough. Increase to see more context; decrease to focus on a single cycle
n_time_per_cycle 36 Temporal resolution within the window (~10 ms per bin at default)
n_pos_lags 41 Width of the look-ahead/behind axis in position bins
min_speed 5 cm/s Minimum running speed to include a cycle; increase to restrict to fast runs

Visualization

Parameter Default Effect
ylim_cm 40 Half-range of the y-axis; increase for long-range sequences
colormap hot Matplotlib colormap name
theta_freq_hz 8 Used to draw the optional ±½-cycle reference lines
save_path (empty) Set to a .png path to save the figure to disk

Summary

In this tutorial you:

  1. Downloaded a session from the public CRCNS HC-11 dataset and loaded it with two blocks — no preprocessing required
  2. Understood the shared analysis trunk: epoch selection, spike clipping, LFP theta processing, and spike binning
  3. Learned how running direction acts as a behavioral state key — the pipeline automatically restricts occupancy, spike counts, and theta cycle accumulation to laps of the correct direction, giving you direction-specific tuning curves, decoded posteriors, and theta sequence heatmaps
  4. Ran the pipeline and interpreted the resulting heatmaps, where a diagonal stripe from lower-left to upper-right indicates the hippocampus sweeping through a prospective spatial trajectory on each theta cycle
  5. Saw how to extend the pattern to other behavioral states by duplicating branches and changing the direction (or epoch) parameter

Next Steps

  • Block Reference — full documentation of all built-in blocks and their parameters
  • Flow Control Blocks — Dataset Iterator and Collect Results for batch processing across multiple sessions
  • Composite Blocks — package this pipeline as a reusable block (Tutorial 1 covers the basics)
